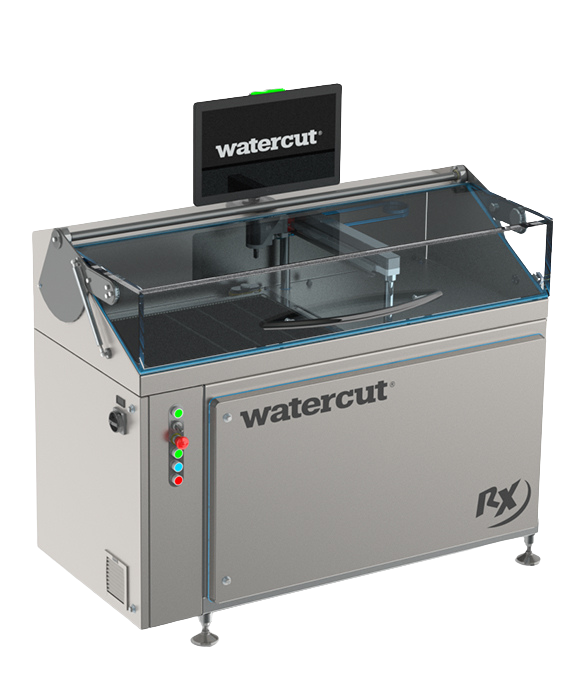

Watercut RX – Compact Professional Waterjet Cutting Machine

Watercut RX – Compact Professional Waterjet Cutting Machine

Small size, big power. The Watercut RX is the most compact waterjet cutting machine on the market capable of cutting 60 × 40 cm trays with precision and speed. Designed for chocolatiers, pastry chefs, and bakeries, it effortlessly cuts frozen cakes, fresh cakes, and chocolate decorations. With its powerful 1500–3500 bar pressure and programmable touchscreen, the RX ensures flawless portioning and design versatility. Its compact footprint and simplified maintenance make it ideal for small laboratories with limited space.

• Cutting Area: 60 × 40 cm (x 100 mm) / 24″ × 16″ (x 4″)

• Cutting Power: 1500–3500 bar / 0.12 – 0.178 mm nozzle

• Machine Dimensions: 150 × 70 × 145 cm

• Max Cutting Speed: 300 mm/s (X-Y axis movement)

• Noise Level: 70 dB

• Weight: ~620 kg

• Screen Size: 22″ touch screen

• Programming: On-screen & PC, internet-enabled (remote access)

• Features: Silent motor, variable pressure, compact footprint, easy maintenance

• Certification: CE

• Lead Time: Approx. 12 weeks (bestseller – 2–3 units shipped weekly)

Required Connections:

• Water supply > 3.5 bar (booster pump included)

• Compressed air 6–7 bar (½″ female ball valve)

• Power supply 400 V, 50/60 Hz, 3-phase + 230 V plug

• Water drain (50 mm pipe)

• Exhaust air pipe (80 mm PVC)

• Ethernet RJ45
